Audio-technica ES933C

audio-technica_es933c
audio-technica_es933caudio-technica_es933c_2
12,700.00 THB ต่อหน่วย Manufacturer: Audio-TechnicaAudio-Technica

รายละเอียดย่อ :
Cardioid Condenser Hanging Microphone

รายละเอียดทั้งหมด :

Audio-technica ES933C Cardioid Condenser Hanging Microphone

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI.

With durable construction and unobtrusive appearance, the ES933C offers versatile solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphone's low-profile element provides a uniform cardioid polar pattern with 120º acceptance angle. Available in two colors: black (ES933C); white (ES933WC), the microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES933C also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.



    • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
    • Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages

    • Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle

    • Available interchangeable elements permit angle of acceptance from 90º to 360º

  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Available in two colors: black (ES933C) and white (ES933WC)
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY -40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 138 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 109 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 5.5 g (0.2 oz)
WEIGHT (POWER MODULE) 81 g (2.9 oz)
DIMENSIONS (MICROPHONE) 27.5 mm (1.08") long,
8.4 mm (0.33") head diameter
DIMENSIONS (POWER MODULE) 92.9 mm (3.66") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type

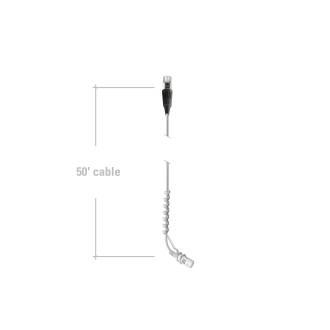

CABLE 15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS ESE-O omnidirectional (360°)
ESE-H hypercardioid (100°)
ESE-ML MicroLine® (90°)
ACCESSORIES FURNISHED ES933C: AT8109 two-stage foam windscreen; AT8452 steel hanger
ES933WC: AT8109(WH) two-stage foam windscreen; AT8452(WH) steel hanger
Both: AT8538 power module
AUDIO-TECHNICA CASE STYLE M25
