QSC PLX2502

plx2502
57,000.00 THB ต่อหน่วย Manufacturer: QSCQSC

รายละเอียดย่อ :
Lightweight Power Amplifier
รายละเอียดทั้งหมด :

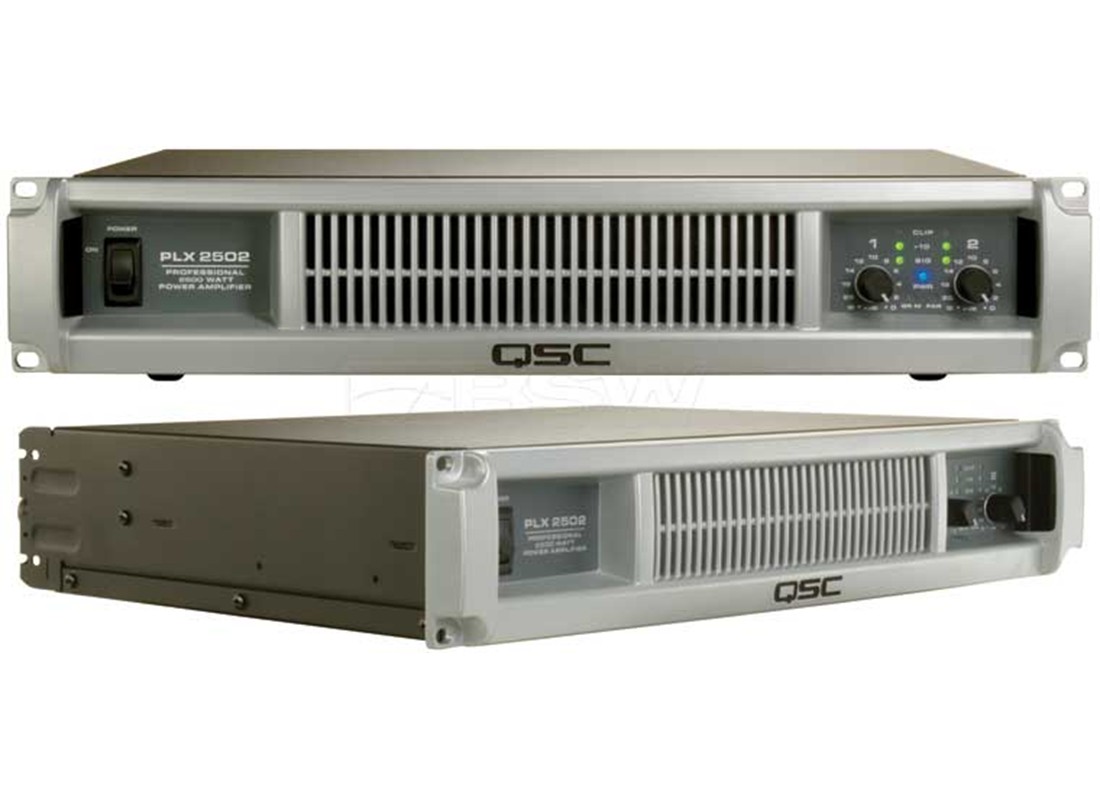

QSC PLX2502 Lightweight Power Amplifier

The PLX2 series is a range of premium quality, high-power amplifiers designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight technology, PLX2 amplifiers combine light weight, superlative audio quality and proven QSC reliability.

The PLX2502 is an excellent choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. The PLX2502 features built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.



SPECIFICATIONS PLX2502
  STEREO MODE, both channels driven *
8 ohms
  FTC 20 Hz - 20 kHz 0.05% THD
  EIA 1 kHz 0.1% THD

425 W
450 W
4 ohms
  FTC 20 Hz - 20 kHz 0.05% THD
  EIA 1 kHz 0.1% THD

675 W
750 W
2 ohms EIA 1 kHz 1% THD  1250 W
  BRIDGE MONO MODE *
8 ohms
  20 Hz-20 kHz 0.1% THD
  EIA 1 kHz 0.1% THD

1400 W
1500 W
4 ohms 1 kHz 1% THD 2500 W

Signal to Noise (20 Hz - 20 kHz) -106 dB
Input Sensitivity @ 8 ohms 1.15 Vrms
Gain @ 8 ohms 34 dB
Output Circuitry 2-Tier Class H
Distortion (SMPTE-IM) Less than 0.02%
Typical Distortion
  1/8 rated power, 20 Hz-20 kHz
  Full rated power, 20 Hz-20 kHz

Less than 0.02%
Less than 0.02%
Frequency Response 20 Hz-20 kHz, -0.5 dB
Damping Factor Greater than 500
Input Impedance 20k ohms balanced
10k ohms unbalanced
Input Clipping 11 Vrms (+21 dBu)
Cooling Variable-speed fan, rear-to-front air flow
Input Connectors, each channel 3-pin XLR and 1/4" TRS balanced
Output Connectors, each channel Neutrik® NL4 Speakon® and Touch-proof binding posts
(Both channels available on Ch 1 NL4 connector)
Rear Panel Switches Input Configuration: Bridge/Stereo/Parallel
Clip Limiters each channel
Filters (per channel): Top 100 Hz HPF/Full/Sub 100 Hz LPF & 33 Hz HPF/Full (infrasonic)
Front Panel Controls Detented Gain Attenuator: 0 to ∞ dB
Power On/Off
Front Panel Indicators Clip: Red LED
-10: Green LED
Signal (-35 dB): Green LED
Power: Blue LED
Parallel: Amber LED
Bridge Mono: Amber LED
PROTECTION

Amplifier Protection Full short circuit, open circuit, thermal, infrasonic, ultrasonic, and RF protection
Stable into reactive or mismatched loads
Load Protection On/off muting, DC-fault power supply shutdown
Infrasonic -3 dB, 5 Hz
DC fault Power supply shutdown
Ultrasonic -3 dB, 85 kHz
Short Circuit Cutback
Thermal Muting at 90° C
Over Current Active clip limiting
Power supply cutback
High Line Standard +15%, survive +25%
Low Line -33%
PHYSICAL
Dimensions
  Height
  Width
  Depth, Rack mounting surface to rear panel
  Overall Depth

3.5" (8.9 cm) 2 rack spaces
19" (48.3 cm)
12.8" (32.6 cm)
14.875" (37.9 cm)
Weight 21 lbs. (9.5 kg) net
26 lbs. (11.8 kg) shipping
Agency Approvals CE, FCC, cUL, UL

* CE versions may have up to 12% (0.5 dBw) less power due to special construction to meet EN-61000 AC harmonic limits


CURRENT CONSUMPTION PLX2502
1/8 Power (pink noise) 8 ohms
4 ohms
2 ohms
5A/120V
7.5A / 120V
11.2A / 120V
1/3 Power (pink noise) 8 ohms
4 ohms
2 ohms
8.2A/120V
12.6A / 120V
19A / 120V
Full Power 8 ohms
4 ohms
2 ohms
15.5A/120V
25A / 120V
37A / 120V
Notes Long term, active-limited to 30A/120V
