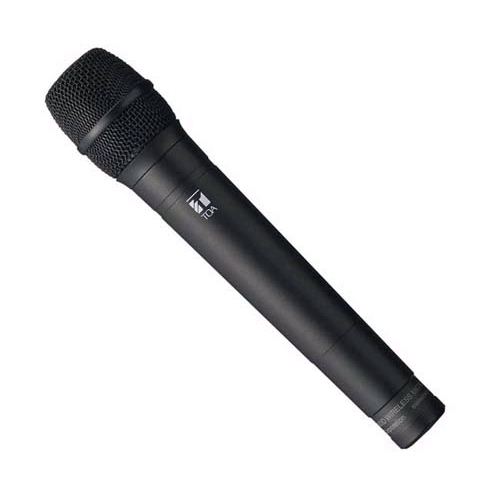

TOA WM-5270

wm-5270
8,770.00 THB ต่อหน่วย Manufacturer: TOATOA

รายละเอียดย่อ :
ไมโครโฟนมือถือไร้สาย UHF Hand-held Wireless Microphone 64 ch.

รายละเอียดทั้งหมด :



TOA WM-5270 ไมโครโฟนมือถือไร้สาย UHF Hand-held Wireless Microphone 64 ch.

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.

Specsheet

https://drive.google.com/file/d/1bjoAF5CJH1wHY5Fv1vvytfIvKx1ueLHB/view?usp=sharing

Brochure

https://drive.google.com/file/d/1lbo90WFd_Naf0r74nCQkMtNWmYiqyXzh/view?usp=sharing




Specification



Microphone Element Dynamic microphone unit: Cardioid
Modulation Frequency modulation
Frequency Range 636 - 865 MHz*, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 142 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 80 - 15,000 Hz
Dynamic Range (AF Circuit) 95 dB or more (with WT-5800)
Battery LR6 (AA)
Battery Life 10 hours or more (alkaline)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10℃ to +50℃
Finish Dark gray
Dimensions φ48 × 244 mm
Weight 340 g (with battery)
Accessory Microphone holder (with stand adapter) …1,
Screw driver (housed in the body) …1, Storage case …1, Rolling stopper …1





HANDHELD TRANSMITTER OPTIONS


WM-5270A01 (Special Order Item) 692-722 MHz

WM-5270E01 668-698 MHz

WM-5270F01 636-666 MHz
Handheld Microphone

  • Dynamic mic element
  • Unidirectional, cardioid pattern
  • 64 selectable channels
  • ON/OFF switch with tab prevents microphone from rolling
  • Single AA battery (ten hours)
  • Low battery indication
  • Built-in antenna
  • Mic clip and carrying pouch included
  • Compatible with receiver models:
    • WT-5800, WT-5805
    • WT-5810, WT-4820
    • WT-4800 (disc.)
    • WT-4810 (disc.)
