QSC AP-5122-BK/WH

ap-5122-bk
69,800.00 THB ต่อหน่วย Manufacturer: QSCQSC

รายละเอียดย่อ :
AcousticPerformance Full Range Loudspeaker, 2-Way (550 Watts, 1x12")

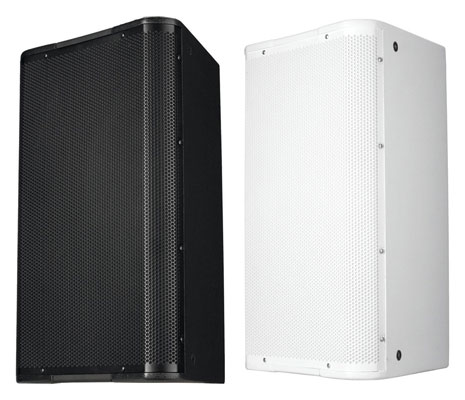

black and white.

รายละเอียดทั้งหมด :


QSC AP-5122-BK/WH AcousticPerformance Full Range Loudspeaker, 2-Way (550 Watts, 1x12")

AcousticPerformance™ is a line of professional, two-way, full-range loudspeakers, ideal for a variety of installed sound reinforcement applications requiring high power in a stylish enclosure. All models feature a 3-inch voice coil compression driver combined with high-output woofers to deliver exceptional full bandwidth reproduction.

The uniform power-response of AcousticPerformance loudspeakers is a result of DMT™ (Directivity Matched Transition), a design approach that matches the compression driver to the natural coverage angle of the woofer in the cross-over region. Key to the extraordinary accuracy and flat power response of the AcousticPerformance line are the axisymmetric waveguides which help deliver remarkably consistent coverage with smooth and accurate reproduction both on and off-axis.

AcousticPerformance™ models may be used in passive (full-range) mode to minimize amplifier channel count or bi-amp mode for greater control and performance. To further enhance performance, bi-amp and full-range tunings using QSC Intrinsic Correction techniques are available for Q-Sys™ and future QSC products.

All models feature M10 mounting points for deployment via eye-bolts as well as mount points for an optional yoke bracket. The AP-5122m multi-purpose enclosure features a 40˚ angle, making it ideal for floor monitor use and a pole cup for deployment on a loudspeaker stand. The enclosure and terminal input cup on the AP-5122m have been designed to facilitate the cable runs for a clean appearance on stage.

Presenting a clean, unobtrusive look, AcousticPerformance grilles are unadorned, eliminating the need to cover-up logo treatments which can be difficult to hide or remove. The grille is also lined with acoustically transparent backing, adding to the enclosure’s professional appearance.



AP-5102/5122/5152 models are available in black (RAL 9011) and white (RAL 9010) finishes. AP-5122m is available in black only. To minimize impact and disposal fees at the job site, all AcousticPerformance loudspeakers are packaged in environmentally friendly, recyclable cartons.

Feature.

  • DMT™ (Directivity Matched Transition) ensures smooth, coherent power response across the listening plane
  • 3” diaphragm compression delivers a clean and powerful high frequency response
  • M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
  • Clean industrial design with unadorned grilles complement most decors and settings
  • NL4 Speakon connector and covered barrier strip terminals*
  • Bi-Amp / Passive Switchable
  • Constructed from 15-ply Baltic birch plywood
  • 16-Gauge powder coated steel grilles
  • Available in black (RAL 9011) and white (RAL 9010)*
  • Complete EASE, CAD & BIM information available online

Specs.



AP-5102

AP-5122

Frequency Response (-10dB)

60Hz – 18kHz

48Hz – 18kHz

Power Capacity1

450W / 54V continuous

550W / 60V continuous

System Sensitivity2

94dB, 1W@1m

95dB, 1W@1m

Coverage Angle

105˚ Axisymmetric

90˚ Axisymmetric

Directivity Factor (Q)

4.6

6.0

Directivity Index (DI)

6.6

7.8

Recommended Crossover

950 Hz, 48dB/octave

950 Hz, 48dB/octave

Maximum Rated SPL

Passive: 121dB @1m, continuous3127dB @1m, peak4

Passive: 122dB @1m, continuous3128dB @1m, peak4

Rated Impedance

HF Transducer

76 mm (3-inch) voice coil, compression
driver; 72W / 24V (2 Hrs)

76 mm (3-inch) voice coil, compression
driver; 72W / 24V (2 Hrs)

LF Transducer

254 mm (10-inch) driver with 76 mm (3-inch) VC; 450W / 54V (2 Hrs)

305 mm (12in) driver with 102 mm (4in) VC; 450W / 60V (2 Hrs)

Optional Accessories

AP-YM10 Yoke mount
M10 Kit-W

AP-YM12 Yoke mount
M10 Kit-W

Enclosure Details





Input Connector

Barrier Strip, NL4 connector

Barrier Strip, NL4 connector

Enclosure Material

15-ply Baltic birch plywood

15-ply Baltic birch plywood

Attachment Points

15x M10 threaded inserts

15x M10 threaded inserts

Color

Black (RAL 9011), White (RAL 9010)

Black (RAL 9011), White (RAL 9010)

Grille

16 Gauge powder coated steel

16 Gauge powder coated steel

Dimensions (HxWxD)

559 mm x 305 mm x 267 mm (22" x 12" x 10.5")

660 mm x 381 mm x 330 mm (26" x 15" x 13")

Net Weight

21.7 kg (48 lb)

29.5 kg (65 lb)
